The RIG Grip® C6
The RIG Grip® C6
New technologies in oil and gas are revolutionizing energy production in America. Protecting populated areas and complying with local containment regulations are essential to securing the future for this vital industry. Rig Grip® Incorporated and its affiliates, leaders in manufacturing sustainable engineered textiles since 1911, developed the Rig Grip® product line as a high-tech containment solution to protect critical drilling areas.
Rig Grip® C6 Brochure | Rig Grip® Cool Down Brochure | ROI Brochure
The RIG Grip® C6 Advantages
Durability
Proprietary TPO core customized for puncture and temperature resistance. Does not crack in the dead of the winter and is durable enough to withstand heavy rig traffic.
Reduced costs
Rugged performance often leads to multiple uses, driving down costs on repair and replacement. Rig Grip® requires roughly 1/3rd of the installation time needed for traditional felt-liner-felt systems.
Safety
Ribbed synthetic carpet technology increases traction for workplace safety. Special summer green reduces temperatures by 20°f compared to standard black liners.
Engineering
Rig Grip® is manufactured using extrusion lamination. Core TPO liner is extruded directly between two fleece layers, making for a solid unicaste product. No glue or adhesive products are used during the production of Rig Grip®. This process ensures long lasting durability and performance.
The Rig Grip® C6 Specifications
| TEST METHOD | PROPERTY | SPECIFICATION |
|---|---|---|
| CBR PUNCTURE ASTM D-6241 | LBS | 720 lbs |
| N/A | CONSTRUCTION | 100% Post Consumer Polyester Structured Nonwoven Face Material with Extruded TPO Core and 100% Post Consumer Polyester Flat Needled Backing |
| FTM NW508 (ASTM D3776) | WEIGHT | 35.2 oz/yd2 +/-3.5 oz/yd2 490 lbs/roll |
| FTM NW502 (ASTM D3774) | WIDTH | 72.0 in (+0.5 in /-0 in) 36” diameter |
| FTM NW504 (ASTM D5729) | TOTAL THICKNESS, CORE THICKNESS | 0.185 in +/- 0.040 in 0.025 in |
| FTM NW505 (ASTM D5034) | TENSILE STRENGTH | MD 350 lbs min CMD 300 lbs min |
| FTM NW506 (ASTM D5034) | ELONGATION INSTRON @ 25# | MD 5% max, CMD 5% max |
| FMVSS302 | FLAMMABILITY | MD 2.5 in / min max (1.6 in/min avg) CMD 2.5 in / min max (1.3 in/min avg) |
| FTM NW 514 (ASTM D3786) | MULLEN BURST STRENGTH | 500 lbs min |
| FTM NW802 | COLD CRACKING | MD Visual – no cracking @ -30°, C CMD Visual – no cracking @ - 30° C |
E-mail: info@riggripinc.com
Sales : (800) 770-2666
Factory : (508) 993-9622
Materials
- Total Thickness: 211 mils
- Top and bottom fabrics: 100% post-consumer polyester.
- Top fabric: 15oz/sy patterned nonwoven.
- Core polymer: 25 mil TPO, providing for rugged flexibility and consistent weld strength. Available in 30 mil.
- Bottom fabric: 10oz/sy needled fabric.
Style

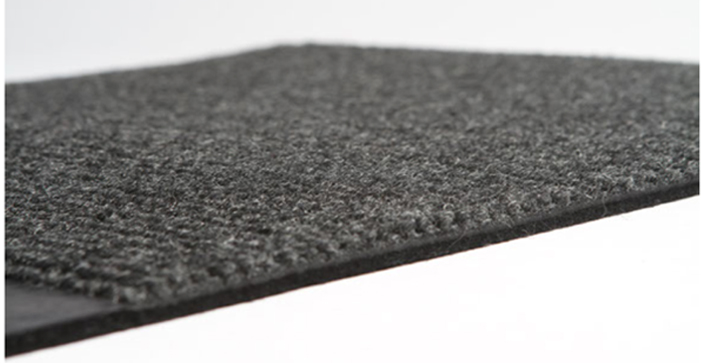

- Top fabric pattern: Ribbed high cord.
- Colors: Summer green, grey, & custom colors available.
Construction & Lamination
- Engineered by unicaste extrusion for maximum bond.
- No glues or solvents, guaranteed.

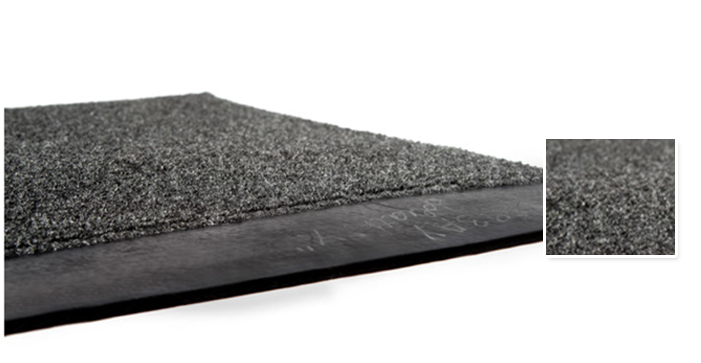

- Matching 4" male/female liner ends for direct TPO-TPO weld.
Roll Dimensions
- 6'x300' and 6’x250’. Custom widths available, including 18’ rolls
Safety
- Specially produced synthetic carpet for non-slip traction.
Repair
- Field Repair Protocol is conducted by thermoplastic welding.
- Prepare damaged area by removing face fabric with a right angle grinder utilizing a 120G flap disk.
- Hand weld Rig Grip® patch material in place & use hand roller to seal.
- Confirm seam quality & touch up if necessary.
